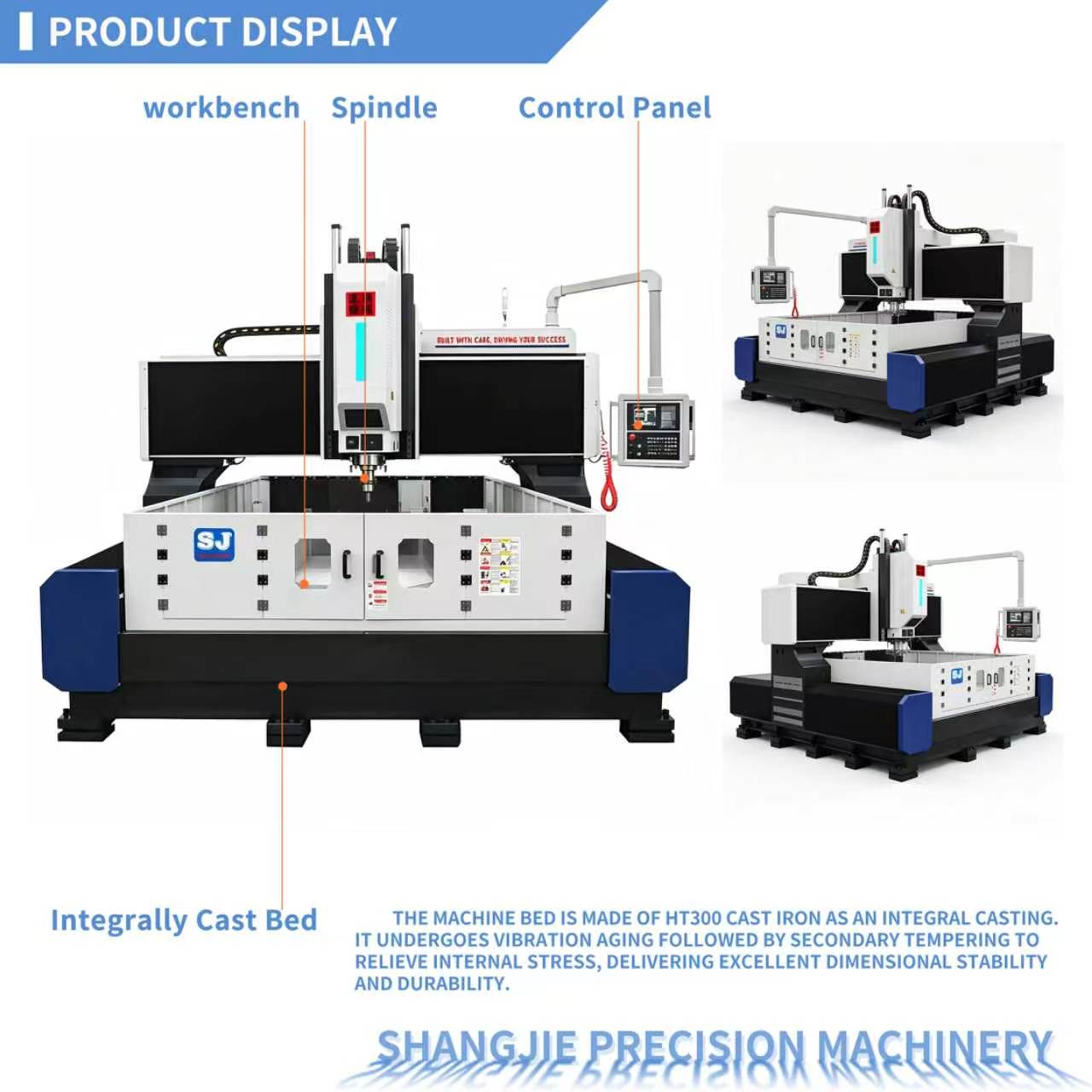

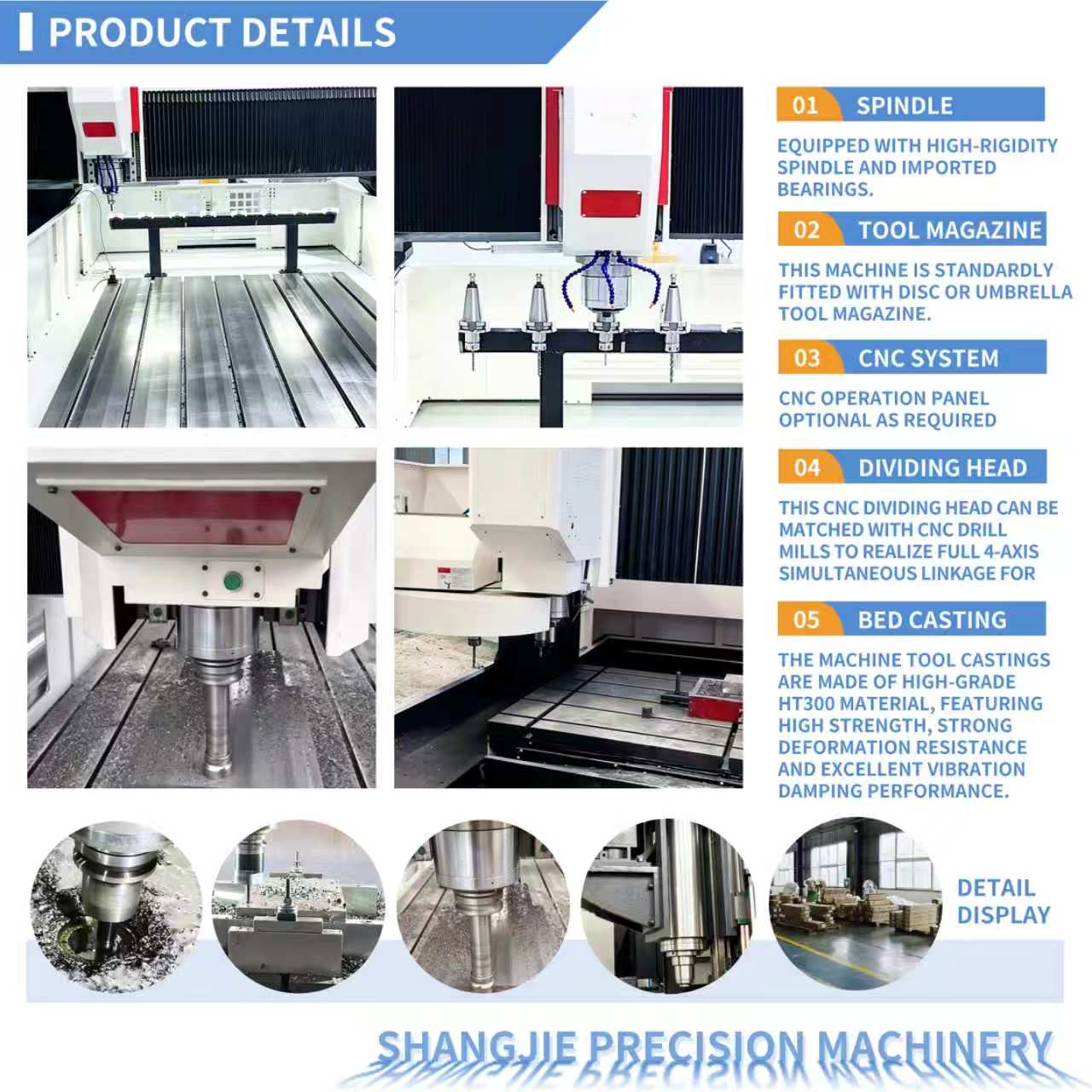

Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping Milling

number of axes : 3

machinery test report : Provided

no. of spindles : 1

table travel (z) (mm) : 600

MOQ : 1

max. table load(kg) : 6000

Model Number : GNC2020

voltage : 380 V

range of spindle speed : 0 - 3000

Place of Origin : Hubei, China

warranty : 1 Year

machining capacity : Heavy Duty

type : Gantry

weight : 25000

Brand Name : Shangjie Precision Machinery

table travel (y) (mm) : 2000

Price : $48,000

repeatability (x/y/z) (mm) : ±0.015

key selling points : Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Long Service Life, Easy To Operate

dimension(l*w*h) : 350*420*220

table travel (x) (mm) : 2000

cnc control system : KND

spindle taper : BT40

positioning accuracy : ±0.005

video outgoing-inspection : Provided

Contact Now

Product descriptions from the supplier

Heavy Duty Construction: Designed for high-stress applications and long-term reliability.

High-Accuracy Milling: Ensures precise cuts and high-quality finishes.

Large Worktable (6000 kg): Accommodates heavy loads and large workpieces efficiently.

Multiple Axes Control: Offers flexibility for various machining needs.

Competitive Price: Affordable solution without compromising on quality.

Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping Milling
Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping Milling
Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping Milling
About this supplier

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is a leading machinery manufacturer established in 2007, operating a 20,000m2 workshop. Specializing in CNC gantry machining centers and precision equipment, we offer ISO 9001-certified products with full manufacturing capabilities. Our quality control includes laser interferometers and HT300 castings, ensuring high precision and reliability.
